SSAW STEEL PIPE is a commonly used type of steel pipe, typically used for transporting fluids, gases, and other materials. It is made by continuously bending and welding a strip of steel. Spiral steel pipes have the following advantages:
High strength: due to the use of spiral winding technology, the strength of the steel pipe is higher than that of other types of steel pipes.
Strong corrosion resistance: the surface of spiral steel pipes can be treated with galvanizing, hot-dip galvanizing, or spraying to increase their corrosion resistance.
Easy installation: spiral steel pipes can be customized as needed and can be welded on site according to actual site conditions, making them convenient and fast to install.
Widely used: spiral steel pipes can be used to transport oil, natural gas, water, and various other chemicals.
We can provide customized sizes, length, material, and standards based on your specific requirements
SSAW/ SWAH STEEL PIPE :
Outside Diameter: 219MM---3620MM
Wall Thickness: 6MM-25MM
Length: 6m, 12m, 18m, (or the length as required)
Material:
The following are some mostly used material for steel pipes and This table is not exhaustive and there are other materials used in spiral steel pipes depending on the specific application and requirements
| Material | Description |
| Q235 | Low carbon steel, widely used in general structural and engineering applications |
| Q345 | High-strength low alloy steel, commonly used in construction and engineering projects |
| X42-X80 | Grades of pipeline steel used in the oil and gas industry, with higher strength and better resistance to corrosion |
| L245-L485 | Grades of pipeline steel used in the oil and gas industry, with higher strength and better resistance to corrosion |
| ASTM A252 GR.2 | Standard specification for welded and seamless steel pipe piles |
| ASTM A53 GR.B | Standard specification for seamless and welded black and hot-dipped galvanized steel pipe |
| API 5L GR.B-X70 | Standard specification for line pipe, used for conveying gas, water, and oil in the petroleum and natural gas industries |
The following are some commonly used standards for steel pipes:
| Classfication | Standard | Main Products |
| Steel Pipe for Fluid Service | GB/T 14291 | Welded pipe for mine fluid service |
| GB/T 3091 | Welded pipe for low pressure fluid service | |
| SY/T 5037 | Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service | |
| ASTM A53 | Black and hot-hipped galvanized welded and seamless steel pipe | |
| BS EN10217-2 | Welded steel types for pressure purposes – delivery technical conditions – part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties | |
| BS EN10217-5 | Welded steel types for pressure purposes – delivery technical conditions – part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties | |
| Steel Pipe for Ordinary Structure | GB/T 13793 | Longitudinally electric resistance welded steel pipe |
| SY/T 5040 | Spirally submerged arc welded steel pipe piles | |
| ASTM A252 | Welded and seamless steel pipe piles | |
| BS EN10219-1 | Cold formed welded structural hollow sections of non-alloy and fine grain steels – part1: Technical deliver conditions | |
| BS EN10219-2 | Cold formed welded structural hollow sections of non-alloy and fine grain steels – part2: tolerances dimensions and sectional properties | |
| Line Pipe | GB/T 9711.1 | Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe) |
| GB/T 9711.2 | Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe) | |
| API 5L PSL1/2 | Line pipe | |
| Casing | API 5CT | Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries |

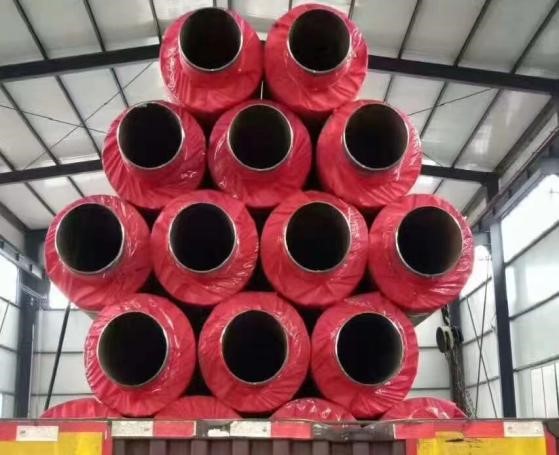

The surface finish of spiral steel pipes is typically aimed at protecting the pipe walls against corrosion and enhancing its appearance. These surface finishing methods include painting, coating,ect.

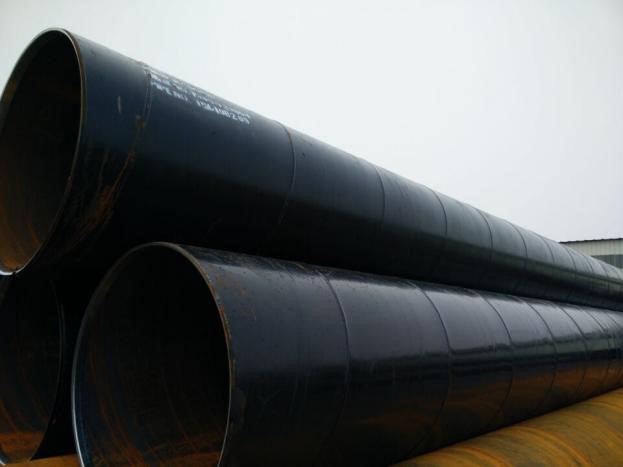

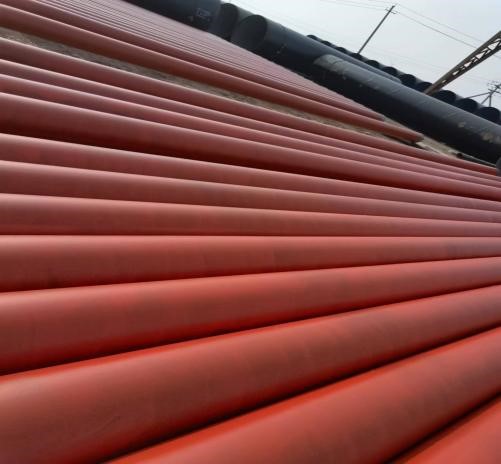

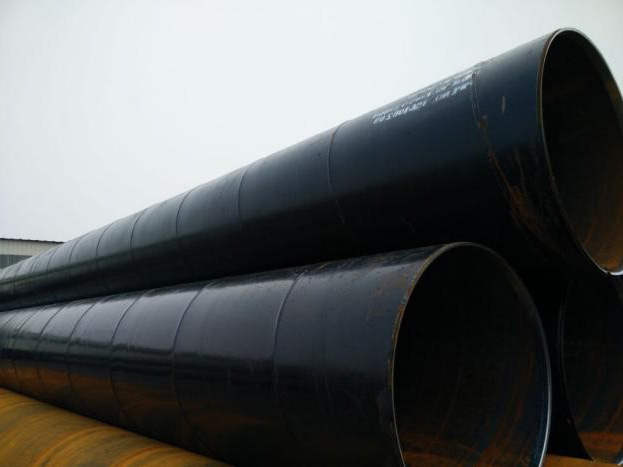

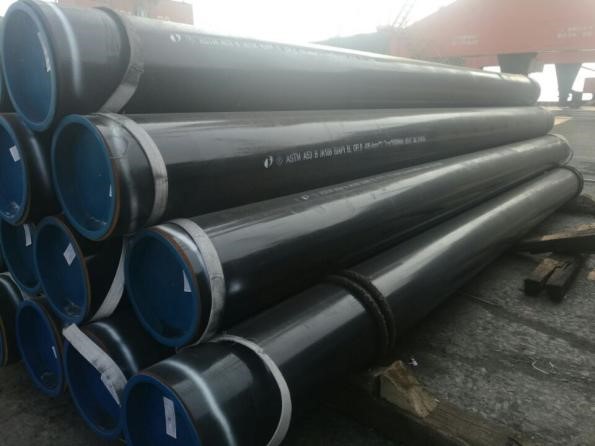

Painting: Painting involves applying a thin layer of paint onto the surface of the steel pipe to provide surface protection and aesthetics. The painted coating can be selected according to customer requirements. Mostly painting in black, red....

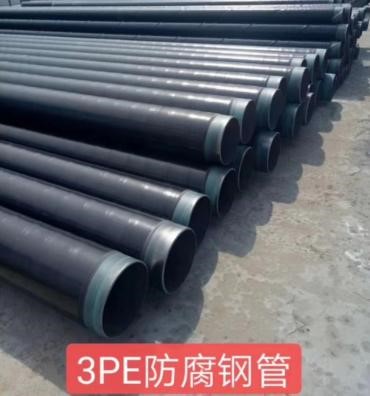

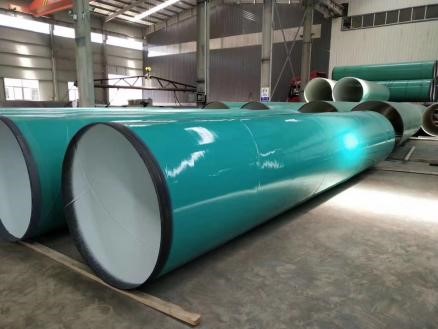

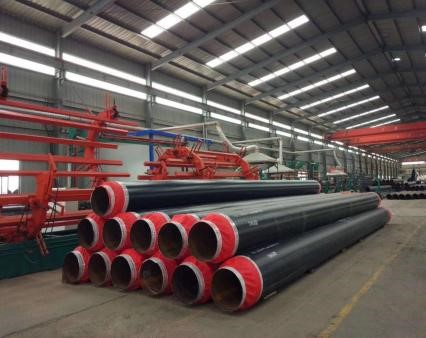

Coating: Coating is typically a plastic coating applied onto the surface of the spiral steel pipe to enhance surface protection. It can provide better protection and appearance by selecting the appropriate plastic material. Most are anti-corrosion and insulation coatings.
Depending on different requirement from the clients and the pipes delivery condition needs.
